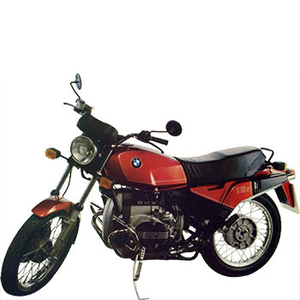

BMW R 80 ST
0347

Year of manufacture:

1982 to 1984

VIN:

6054001 - 6058984

Specifications*:

Engine size:

797

Cylinders:

hp/kW:

50/37

Vehicle weight (kg):

198

Seat height (mm):

845

Valve clearance (intake):

KALT 0,10 MM

Valve clearance (exhaust):

KALT 0,15 MM

Engine idle speed:

900 ± 100 U/MIN

Carburettor air screw:

0,75 AUSDREHUNGEN

Tyre pressure (front):

2,1 BAR

Tyre pressure (rear):

2,2 (2,4) BAR

Spark plug 1:

NGK BP6ES

Spark plug 2:

NGK BPR6EIX

Electrode gap:

0,7 MM

Fork tube diam.:

36 MM TELEGABEL

Chain/Final drive:

KARDAN

Capacities*:

Fork oil per rod:

190 ML SAE 5W/10W

Engine oil w/o filter:

2,2 L SAE 20W-50

Engine oil with filter:

2,5 L MIN. API SE

Gear oil:

800 ML SAE 90 GL-5

Brake fluid:

DOT 4

Final drive oil:

350 ML SAE 90 GL-5

Fuel:

19,5 LITER

Coolant:

LUFTGEKÜHLT
